Tactile Marking Tapes
1. Attention Field
2. Direction Field
3. Guidance Field
4. Carriageway
5. Curb edge
6. Pavement
Stay Oriented – Safe Navigation for the Impaired
Safe Navigation for the ImpairedRoadworks in urban areas pose a major challenge for people with visual impapments. The sudden interruption of permanently installed guidance markings often leads to disorientation and an increased risk of accidents.
NavTac can be used in a variety of ways and precisely marks obstacles and danger spots to enable people with visual impariments to orientate themselves clearly and safely - for example at
Temporary relocation of public transport stops of local public transport services
Temporary changes to routing due to events (e.g. trade fairs, sporting events, city festivals)
Construction sites and obstacles in the pedestrian area
Temporarily placed pedestrian traffic lights
The yellow NavLines road marking tapes also sensitise other road users not to place obstacles such as e-scooters or rubbish bins near guidance fields for visually impaired people.

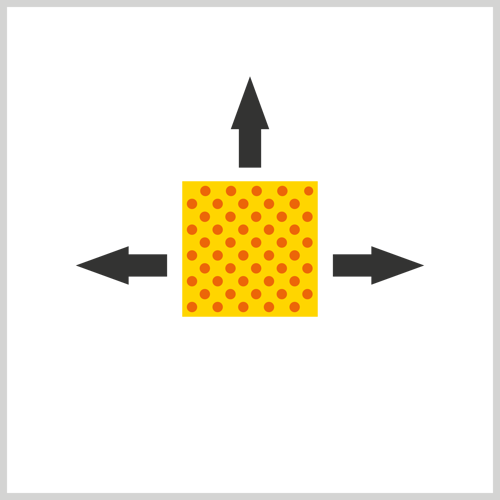

NavTac Dots
Attention Field with Raised Dots
Lenght 29 x Width 29 cm |
Weight 0.4 kg |
5 x 5 fields |
The specially developed studs provide immediate tactile feedback, signalling danger zones at an early stage and increasing road users' awareness.

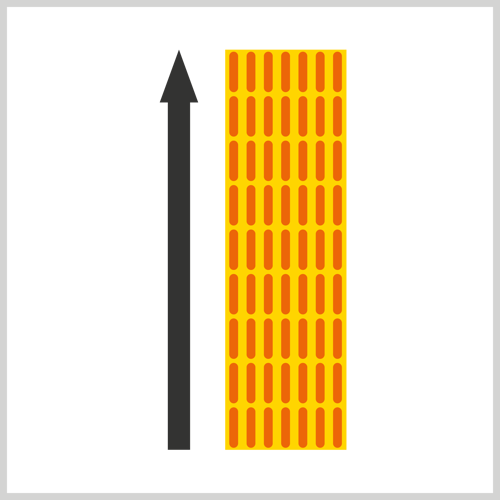

NavTac Lines
Guide field with guide strip
Length 95 x Weight 29 cm |
Width 1.6 kg |
9 x 7 fields |
Direction Field
Length 105 x Width 32 cm |
Weight 1.9 kg |
25 x 3 fields |
The precisely designed longitudinal ribs in transverse and vertical directions provide a clear and tactile guide line that enables safe navigation.
NavTac marking tapes: Safe construction site guidance for people with visual impairments
NavTac – Tactile Road Marking Tapes
Advantages of temporary road marking tapes:
 |
Quick application and easy removal: Thanks to our innovative adhesive technology, the tapes can be applied in a very short time and removed just as quickly without leaving and residue. |
 |
Available in various legths: Our Tapes are available in different lengths, widths and colours to ensure maximum flexibility and adaptability to any construction site situation. |
 |
Slip resistance: The non-slip surface provides a secure grip, even in wet and adverse weather conditions. |
 |
Ideal for Asphalt, Pavers and Concrete: The NavTac road marking tape is suitable for various soild surfaces, providing reliable guidance. |
The temporary tactile guideline for the urban construction site
